oktalite

LORETO

Luminous panels in grand style

L

LORETO

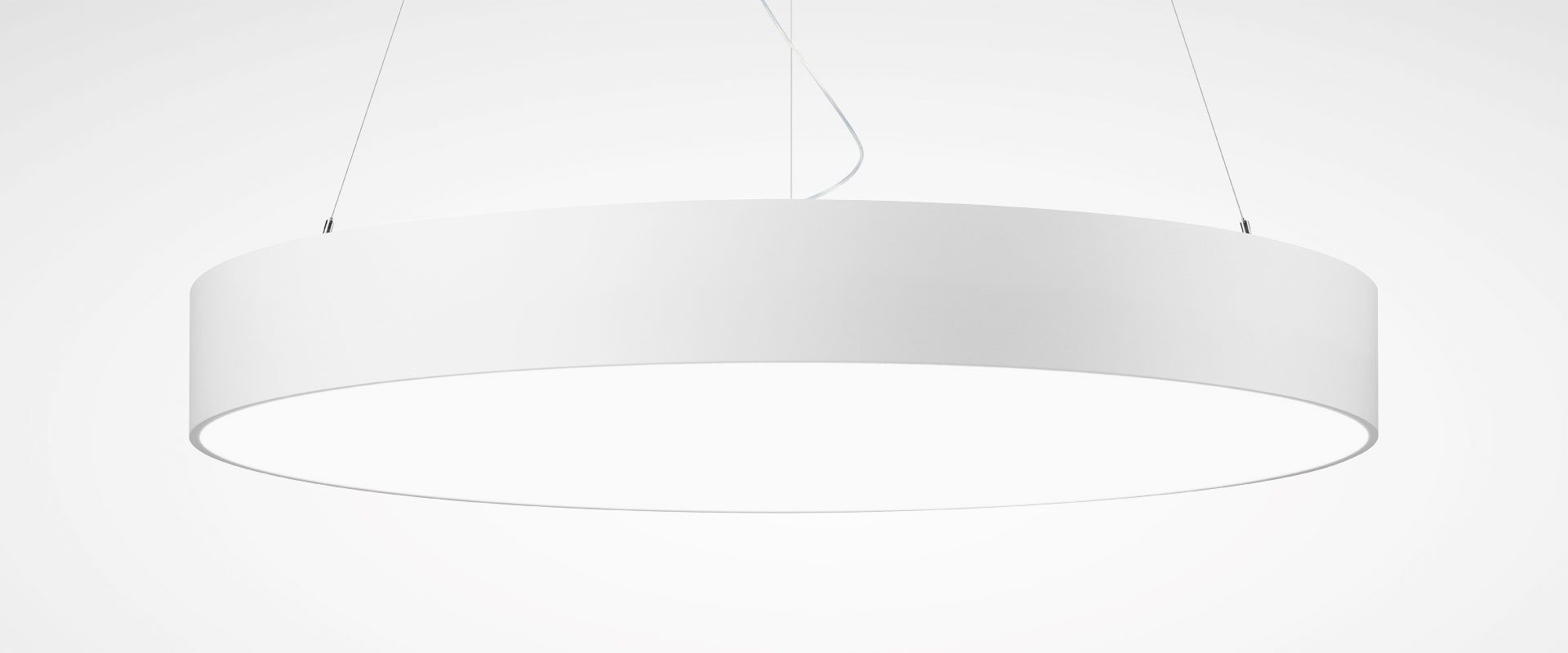

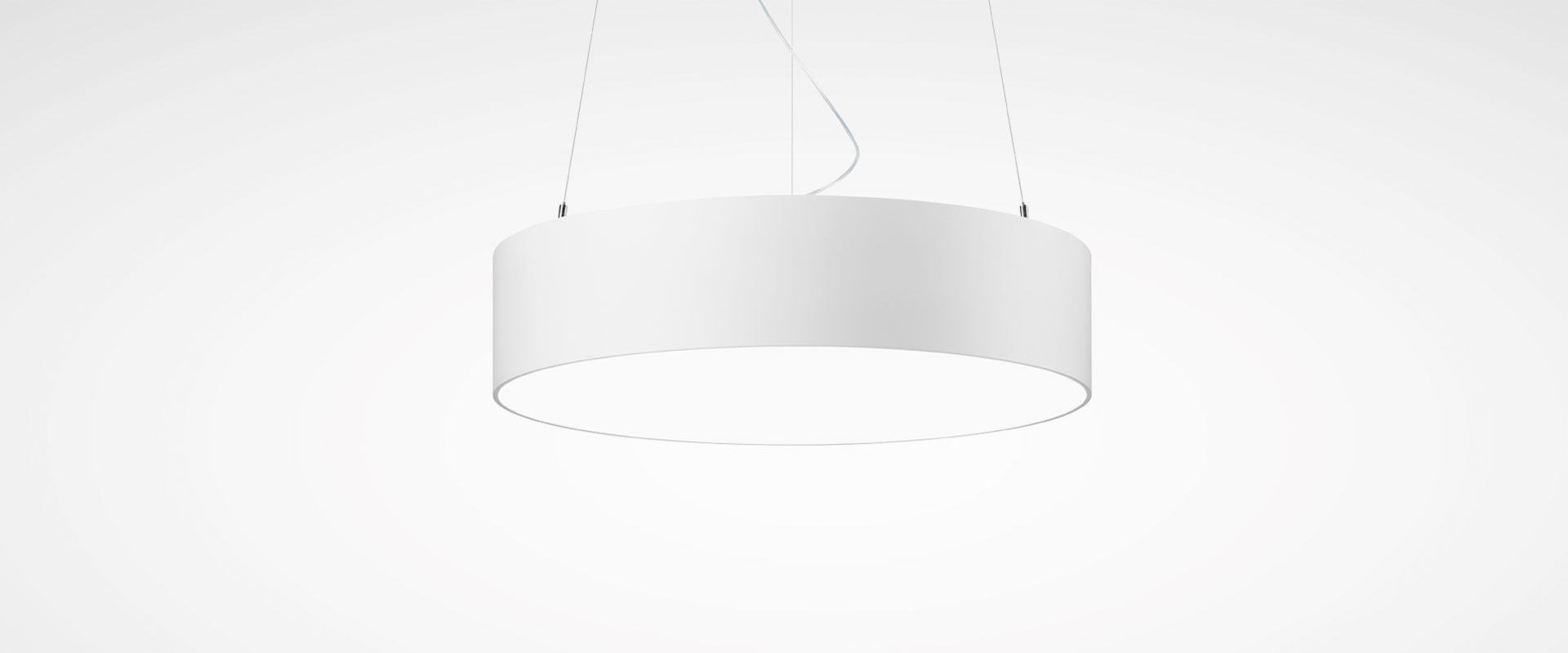

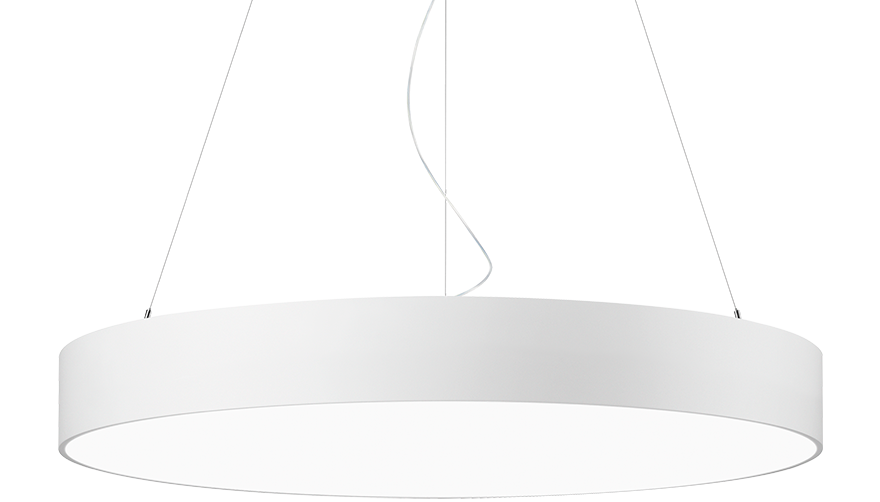

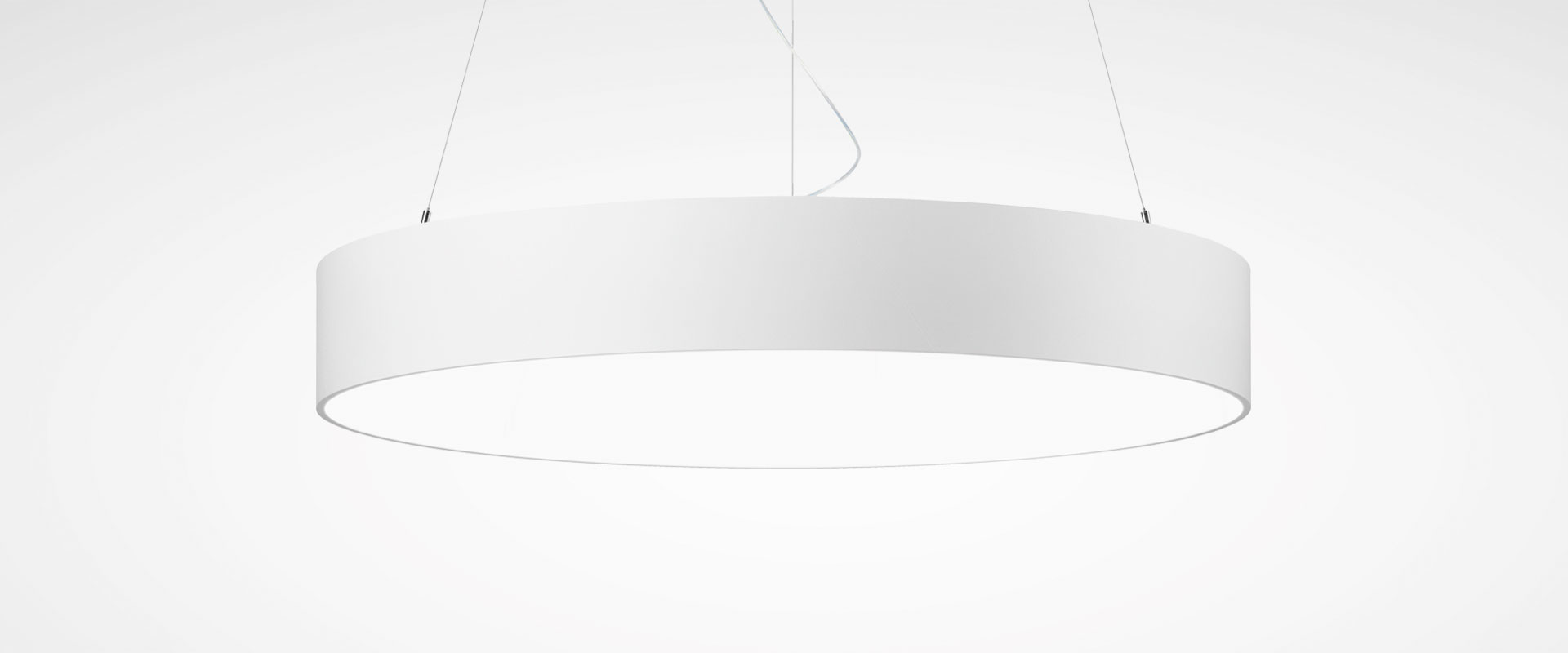

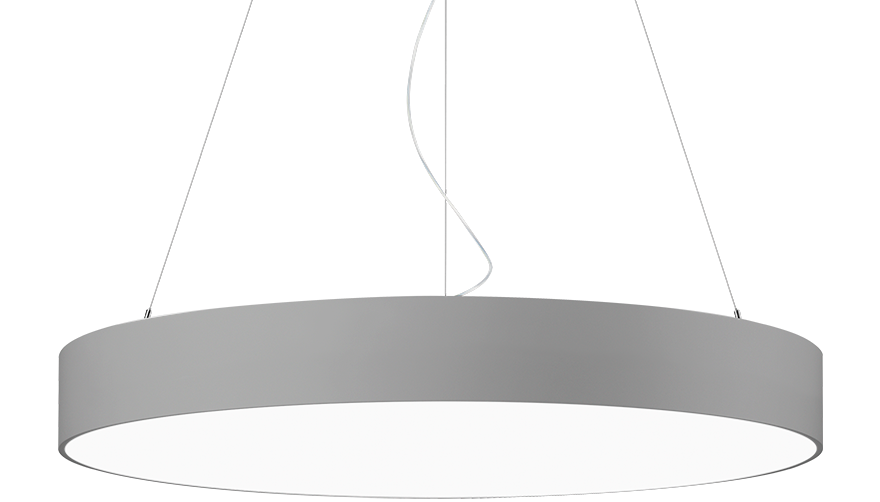

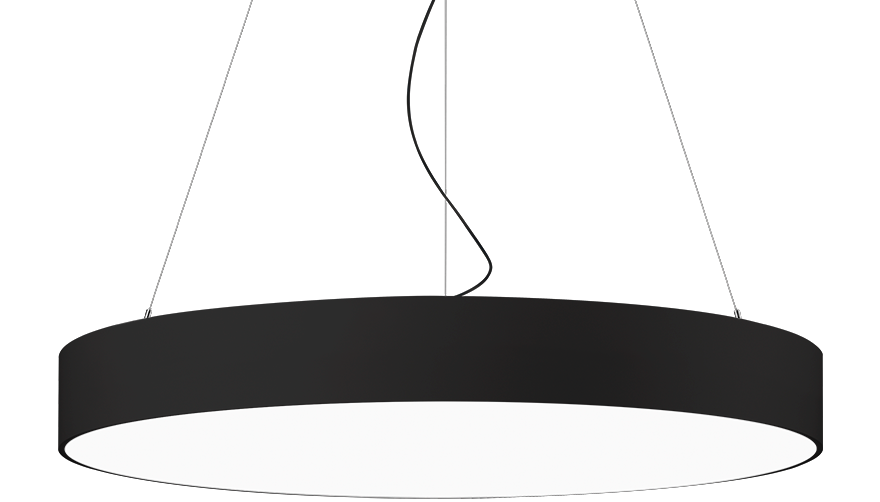

LORETO combines performance with large-area, visible light and in that way is ideally qualified for representative areas such as malls or entrance areas. Three different diameters, two different light colours and three pendant lengths leave a lot of leeway for supporting the architecture. At the same time, LORETO is, with its up to 10,000 lm a real power package.

LORETO in use

As a large size suspended luminaire, LORETO supports customer guidance with its visible light.

"We want to establish the Migros philosophy in France, but at the same time to cultivate our cultural characteristics."

Karim Haahtio, Managing Director of Migros Thoiry

The suspended luminaire LORETO lends additional flair to the new Migros lighting landscape.

white

medium

dark

Color:

Guidance with visible light, for example in malls

Three different diameters available

Lumen packages from 5,000 – 10,000 lm

LEDIQ for your smart lighting management

Technical Specifications & Downloads

Please select a light source

Application areas base illumination
LED Luminous Flux Class 5000 lm - 10000 lm
Light colour 3000 K, 4000 K
Supply unit Driver
Lighting controls on request
Material Sheet steel
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight 12.5 kg / 22.5 kg / 25.5 kg

Technische Zeichnung_EN

Application areas base illumination
LED Luminous Flux Class 5000 lm - 10000 lm
Light colour 3000 K, 4000 K
Supply unit DALI driver
Lighting controls DALI DT6
Installation Recommended for new installation.
Material Sheet steel
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight 13.0 kg / 23.0 kg / 26.0 kg

Technische Zeichnung_EN

LORETO references


The Loreto product family

LORETO

suspended luminaire


Round


3 standard sizes


Suspended


3000 K, 4000 K


Up to 10,000 lm


Homogeneous illumination


View product

E-LINE NEXT LED

suspended luminaire


View product
