LIMBA

Classic meets modern

L

LIMBA

LIMBA – Suspended luminaire for professional accentuated lighting in vintage design. The lampshade made of aluminium is as standard coloured on the outside and white on the inside and a textile cable undescores the high-quality appearance. In that way LIMBA becomes a decorative eyecatcher. Individual colour combinations are possible on request.

LIMBA in use

With a lampshade in a vintage look, the suspended luminaire LIMBA stands for timeless aesthetics. The custom-selectable performance  of the LED modules of up to 5000 lumens in six white light colours provides a wide range of possible uses in every store. For the fresh food area there are three special light colours to choose from.

As an alternative to professional goods illumination, for decorative purposes a filament lamp can be used in the classic lightbulb style. Various cable and shade colours additionally permit customised adaptation to the shop concept. In that way, LIMBA becomes a nostalgic eyecatcher with ultramodern technology.

LIMBA Style Generator

Design your own personal LIMBA with the Style generator

To the LIMBA Style Generator

Value added by more lighting management

Think LEDIQ! The demands made on a modern lighting control system are diverse. From the emotionalising of small areas at the POS as far as the building lighting management, every area in the store requires its personal solution.

Find out more

Lightquality – inspired by the sun

Lighting, as natural and atmospheric as the afternoon sun on a clear spring day, at the same time with intense and brilliant colour: this performance is our inspiration for the optimization of holistic lighting for retail.

FIND OUT MORE

white

Color:

A decorative eyecatcher to round off the store design
Vintage look meets modern technology

The selection of cable and shade colours permits personal colour schemes: design your own personal LIMBA with the Style Generator!

Large choice between professional LED equipment and filament lamps for E27 socket

Opal acrylic ring for perfect glare suppression and long-distance effect

Five beam angles for optimum goods illumination

Technical Specifications & Downloads

Please select a light source

Application areas Decorative lighting
LED Luminous Flux Class 1500 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, M, M+F, BF
Optic 3D facetted reflectors
Supply unit Driver
Lighting controls on request
Material Sheet steel
Luminaire colour RAL 9005 jet black
RAL 9016 traffic white
Weight Approx. 4.4 kg

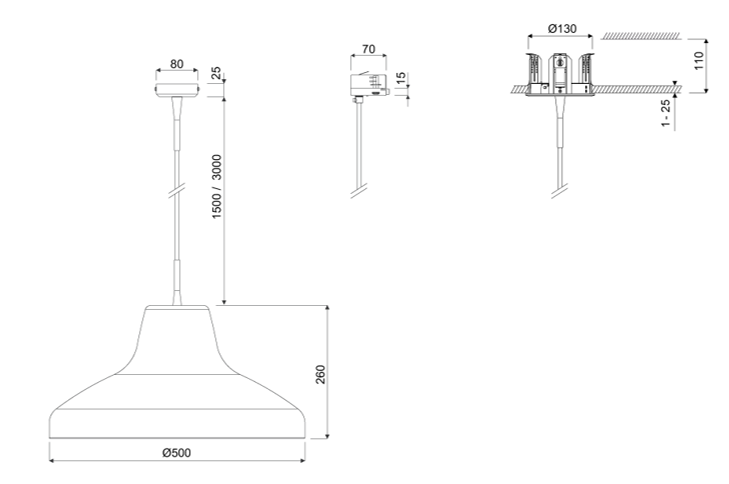

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 4 MB zip

IES 3 KB zip

LDT 4 KB zip

Revit 988 KB zip

ULD 909 KB zip

3DS 86 KB zip

Application areas Decorative lighting
LED Luminous Flux Class 3000 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, M, M+F, BF
Optic 3D facetted reflectors
Supply unit DALI driver
Lighting controls DALI DT6
Installation Recommended for new installation.
Material Sheet steel
Luminaire colour RAL 9005 jet black
RAL 9016 traffic white
Weight Approx. 4.4 kg

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 4 MB zip

IES 3 KB zip

LDT 4 KB zip

Revit 988 KB zip

ULD 909 KB zip

3DS 86 KB zip

Application areas Decorative lighting
Supply unit Driver, Direct mains connection
Lighting controls
Material Sheet steel
Luminaire colour RAL 9005 jet black
RAL 9016 traffic white
Weight Approx. 2.4 kg

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 2 MB zip

IES 3 KB zip

LDT 4 KB zip

ULD 909 KB zip

3DS 86 KB zip
